More than a biscuit joiner — Lamello is a precision joinery system engineered to reduce assembly time, eliminate rework, and help professional shops build faster, cleaner, and more profitably.
Lamello Joining Systems

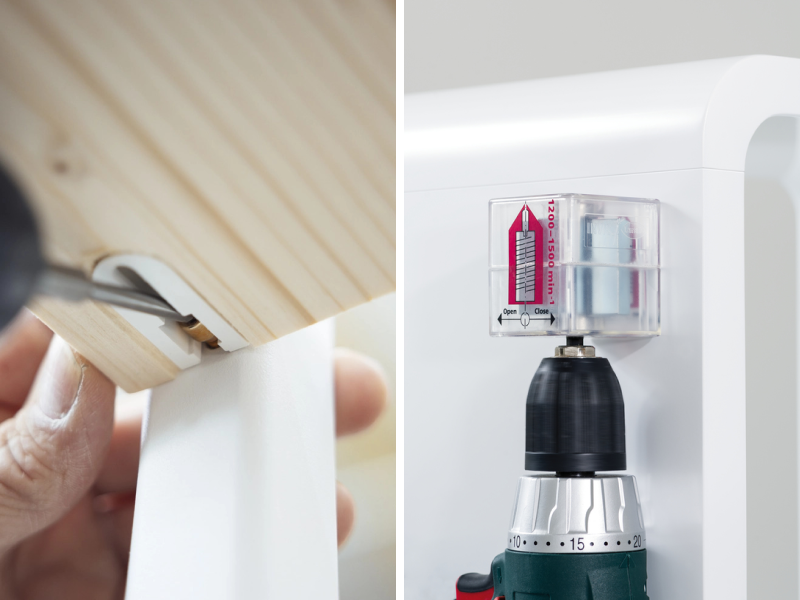

Drilling System
Unique drilling systems for high demands on productivity and aesthetics.

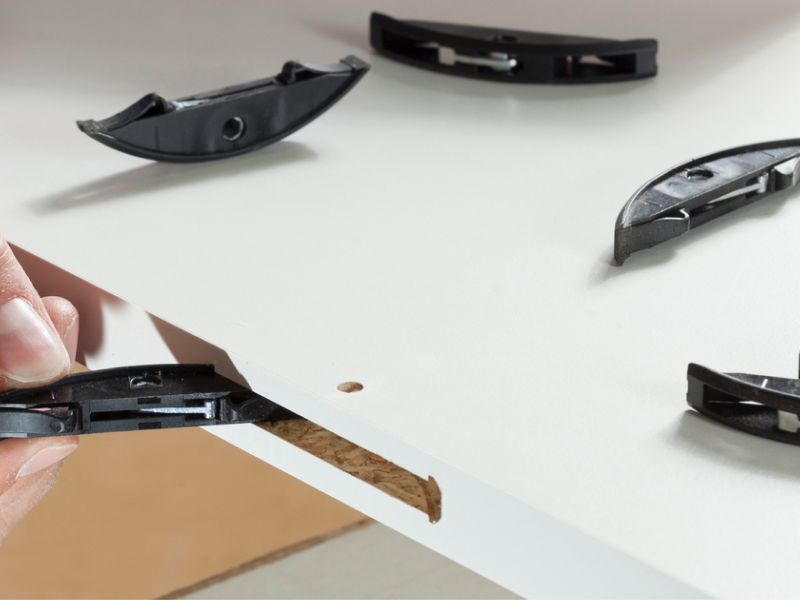

Système P
The time-saving joining system with form-locking anchoring.

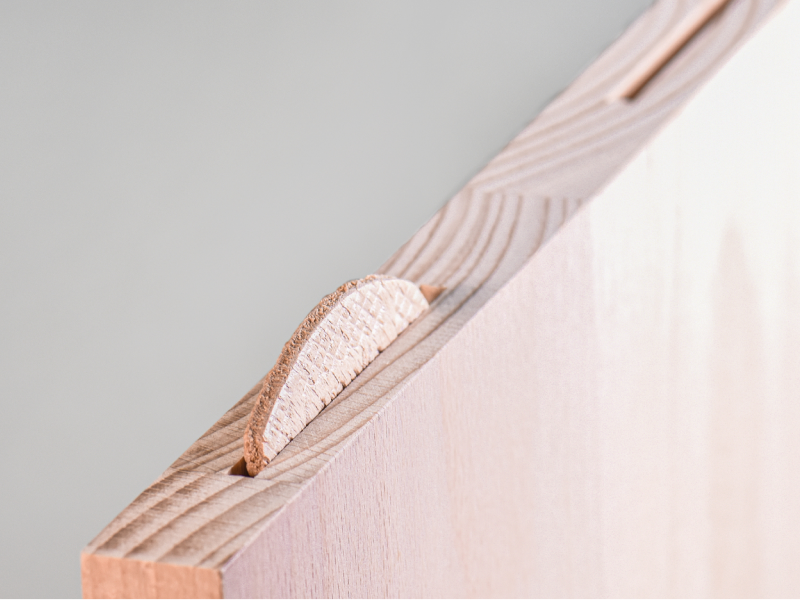

Lamello System
The original for efficient, intuitive and precise joints.

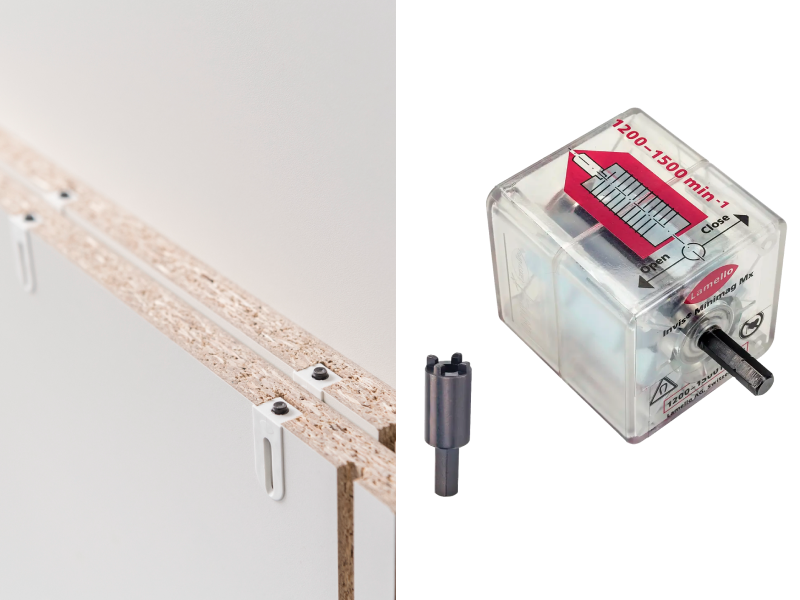

Versatile connection solutions for drilling
The Lamello drilling system is divided into two product families: Cabineo and Invis Mx2. The Cabineo cabinet connector was specially developed for use on all CNC machines. The Cabineo scores points with the highest clamping force and can be preassembled in production to save time thanks to pure surface machining. The Invis Mx2 is the unique joint that satisfies the highest demands for aesthetics, stability and productivity. With no visible openings, the Invis Mx2 is quickly detached and reconnected at any time via its magnet drive.
Cabineo Features
Fast Assembly
Assemble and screw together directly with the cordless drill without having to insert screws or dowels first
High clamping force
Very high clamping force compared to other cam connectors due to the 12 mm Euro screw, which is screwed in with a cordless drill
No Edge Drilling
For use with CNC without edge drilling
No Dowel Holes
Due to the high strength, no dowels are required, which completely eliminates the need for edge drilling
One-piece and pre-installed
Installation in the workshop means no losing of the housing or screw, as well as faster assembly on site
Cabineo Advantages

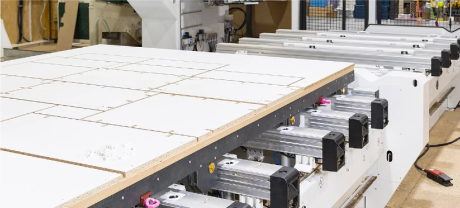

Production
Optimised process due to surface machining; no edge drilling necessary.
Only one tool change from 5mm to 15mm drill; no tool change for the dowel hole drill necessary.
No dowel holes means less drill holes per connector.
Shallow element of 10mm allows for panels from 12mm thickness.

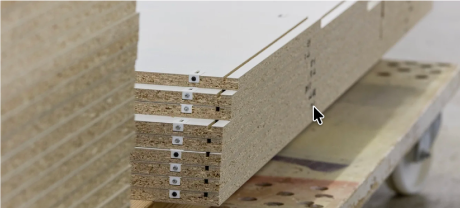

Transportation
Efficient pre-installation of the one-piece connector in the factory.
Flat pack delivery with pre-installed connectors.
No extra bags or loose hardware required with furniture shipment.
Detachable for transport or if the fixed shelves need adjusting.

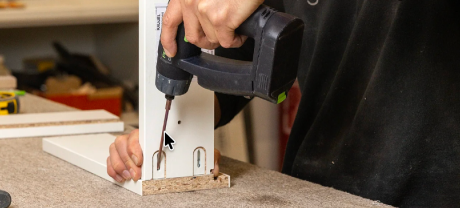

Assembly
One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary.
Easy positioning of the Cabineo in the corresponding hole due to the protruding screw.
Fast assembly with a cordless drill.
Installation of fixed shelves or vertical dividers in an already assembled unit.

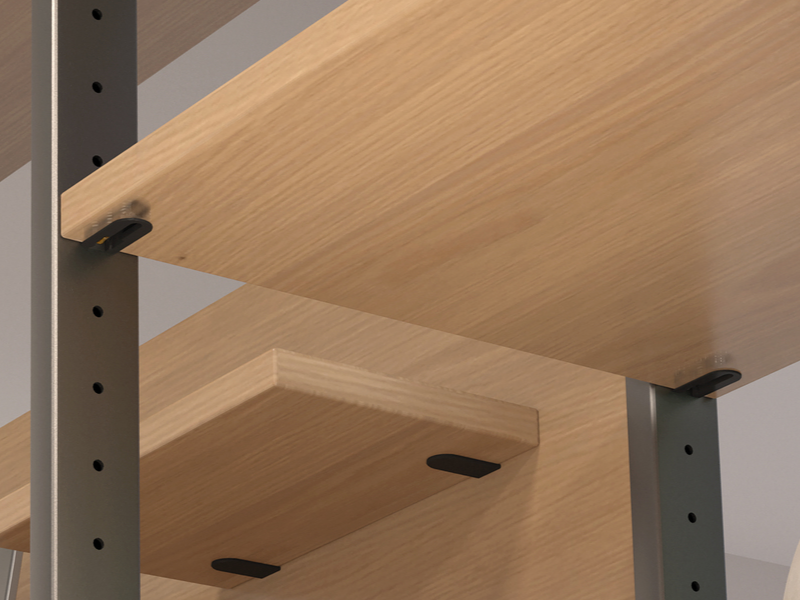

Cabineo X
Cabineo X is a connector for cabinets and shelves, that can be used with all CNC machines and is pressed into place in the workshop or on site. Due to the open housing, it is possible to insert a Cabineo screw from the top and screw it into the counterpart with a hexagon bit. Using it with screws, Cabineo X is ideal when installing shelves into already joined cabinets or when assembling corner joints. Combined with shelf supports, Cabineo X prevents shelves from being pulled out.
Cabineo X Features
No Edge Drilling
For use with CNC without edge drilling
Locked shelf
Secured against pulling out and lifting off; ideal for open shelf units or for caravans and shipbuilding
Multifunctional Housing
Same housing for connectors and adjustable shelves
Simplified Assembly
Placing the cabinet tops and shelves onto the screw or shelf pin simplifies the assembly
Various Materials
Counter thread can be cut directly into the material
CABINEO Products

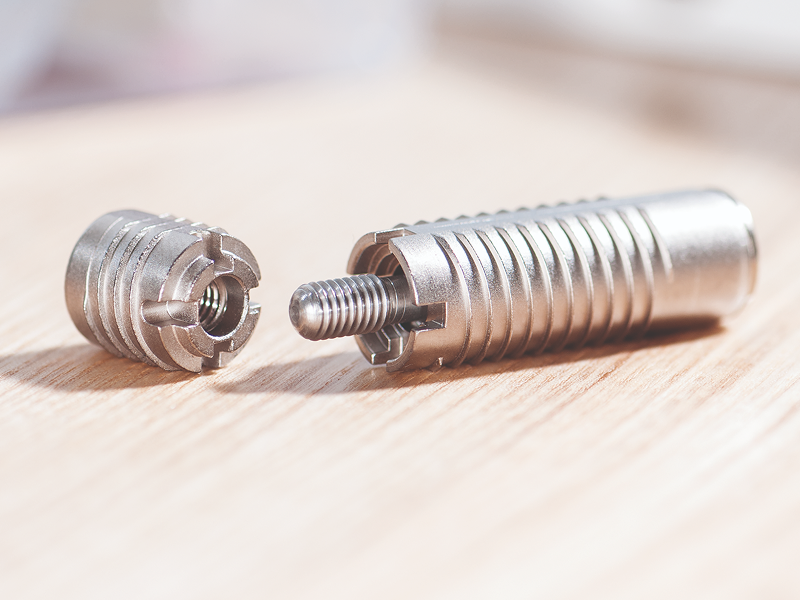

Invis Mx2
Invis Mx2 est une connexion magnétique unique en son genre qui répond aux exigences les plus élevées en matière d'esthétique, de stabilité et de productivité. Sans ouverture visible, Invis Mx2 se connecte et se déconnecte rapidement, encore et encore, grâce à son entraînement magnétique. Les connecteurs Invis Mx2 sont vissés dans les trous de 12 mm du panneau. En utilisant le MiniMag avec une perceuse sans fil, la connexion se ferme et crée une force de serrage allant jusqu'à 250 kg par connecteur. Idéal pour les meubles peints en haute brillance, les pièces moulées, les escaliers, etc.
Invis Mx2 Features
High clamping force
Very high joint tension of up to 250 kg per connector
Invisible
Unique magnetic drive enables completely concealed connections for the highest demands
Détachable
The connection can always be released by reversing the direction of rotation of the cordless screwdriver
Invis Advantages

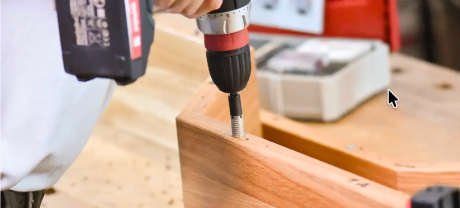

Powerfully screwed-together workpieces
Le connecteur magnétique permet de connecter des pièces avec une force de serrage allant jusqu'à 250 kg.

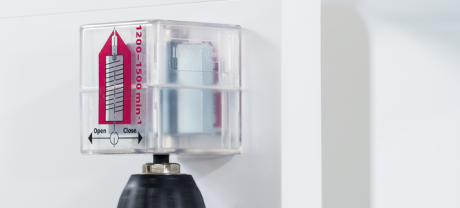

Can be detached in seconds
Assembled pieces of furniture can be very quickly detached by changing the rotary direction of the MiniMag Mx2.

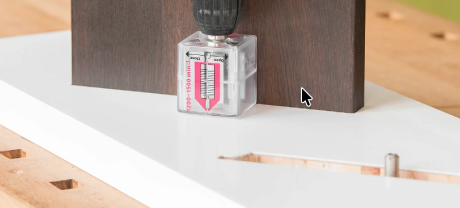

Completely invisible
The magnetic connector Invis Mx2 allows completely invisible and yet detachable connections.
INVIS MX2 Product
Système P
Clamex
tenso
divario
Bisco P

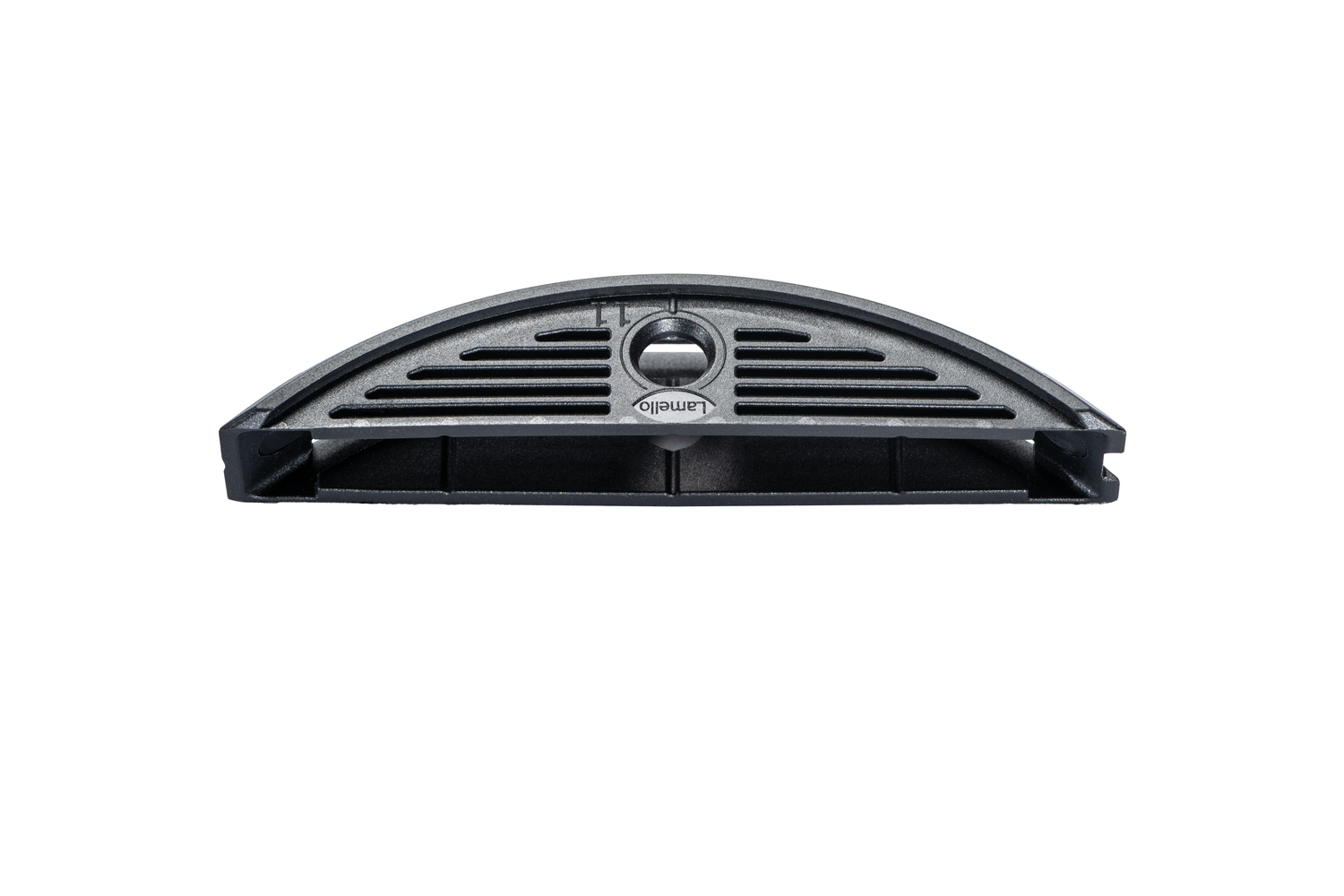

LC P-16
