More than a biscuit joiner — Lamello is a precision joinery system engineered to reduce assembly time, eliminate rework, and help professional shops build faster, cleaner, and more profitably.
Lamello Joining Systems
Drilling System
Unique drilling systems for high demands on productivity and aesthetics.
P-System
The time-saving joining system with form-locking anchoring.
Lamello System
The original for efficient, intuitive and precise joints.
Versatile connection solutions for drilling
The Lamello drilling system is divided into two product families: Cabineo and Invis Mx2. The Cabineo cabinet connector was specially developed for use on all CNC machines. The Cabineo scores points with the highest clamping force and can be preassembled in production to save time thanks to pure surface machining. The Invis Mx2 is the unique joint that satisfies the highest demands for aesthetics, stability and productivity. With no visible openings, the Invis Mx2 is quickly detached and reconnected at any time via its magnet drive.
Cabineo Features
Fast Assembly
Assemble and screw together directly with the cordless drill without having to insert screws or dowels first
High clamping force
Very high clamping force compared to other cam connectors due to the 12 mm Euro screw, which is screwed in with a cordless drill
No Edge Drilling
For use with CNC without edge drilling
No Dowel Holes
Due to the high strength, no dowels are required, which completely eliminates the need for edge drilling
One-piece and pre-installed
Installation in the workshop means no losing of the housing or screw, as well as faster assembly on site
Cabineo Advantages
Production
Optimised process due to surface machining; no edge drilling necessary.
Only one tool change from 5mm to 15mm drill; no tool change for the dowel hole drill necessary.
No dowel holes means less drill holes per connector.
Shallow element of 10mm allows for panels from 12mm thickness.
Transportation
Efficient pre-installation of the one-piece connector in the factory.
Flat pack delivery with pre-installed connectors.
No extra bags or loose hardware required with furniture shipment.
Detachable for transport or if the fixed shelves need adjusting.
Assembly
One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary.
Easy positioning of the Cabineo in the corresponding hole due to the protruding screw.
Fast assembly with a cordless drill.
Installation of fixed shelves or vertical dividers in an already assembled unit.
Cabineo X
Can be used with Cabineo X screws or shelf supports
Cabineo X is a connector for cabinets and shelves, that can be used with all CNC machines and is pressed into place in the workshop or on site. Due to the open housing, it is possible to insert a Cabineo screw from the top and screw it into the counterpart with a hexagon bit. Using it with screws, Cabineo X is ideal when installing shelves into already joined cabinets or when assembling corner joints. Combined with shelf supports, Cabineo X prevents shelves from being pulled out.
Cabineo X Features
No Edge Drilling
For use with CNC without edge drilling
Locked shelf
Secured against pulling out and lifting off; ideal for open shelf units or for caravans and shipbuilding
Multifunctional Housing
Same housing for connectors and adjustable shelves
Simplified Assembly
Placing the cabinet tops and shelves onto the screw or shelf pin simplifies the assembly
Various Materials
Counter thread can be cut directly into the material
CABINEO Products
INVIS MX2
Invis Mx2
For the highest demands on aesthetics, stability and productivity
Invis Mx2 is a unique, magnet-driven connection for the highest demands on aesthetics, stability and productivity. With no visible openings, Invis Mx2 is connected and disconnected quickly again and again, using its magnetic drive. Invis Mx2 connectors are screwed into the 12 mm drill holes in the panel. Using the MiniMag with a cordless drill, the connection closes and creates a clamping force of up to 250 kg per connector. Ideal for high gloss painted furniture, molded workpieces, stairs, etc.
Invis Mx2 Features
High clamping force
Very high joint tension of up to 250 kg per connector
Invisible
Unique magnetic drive enables completely concealed connections for the highest demands
Detachable
The connection can always be released by reversing the direction of rotation of the cordless screwdriver
Invis Advantages
Powerfully screwed-together workpieces
The magnet-driven connector enables workpieces to be connected with up to 250 kg of clamping force.
Can be detached in seconds
Assembled pieces of furniture can be very quickly detached by changing the rotary direction of the MiniMag Mx2.
Completely invisible
The magnetic connector Invis Mx2 allows completely invisible and yet detachable connections.
INVIS MX2 Product

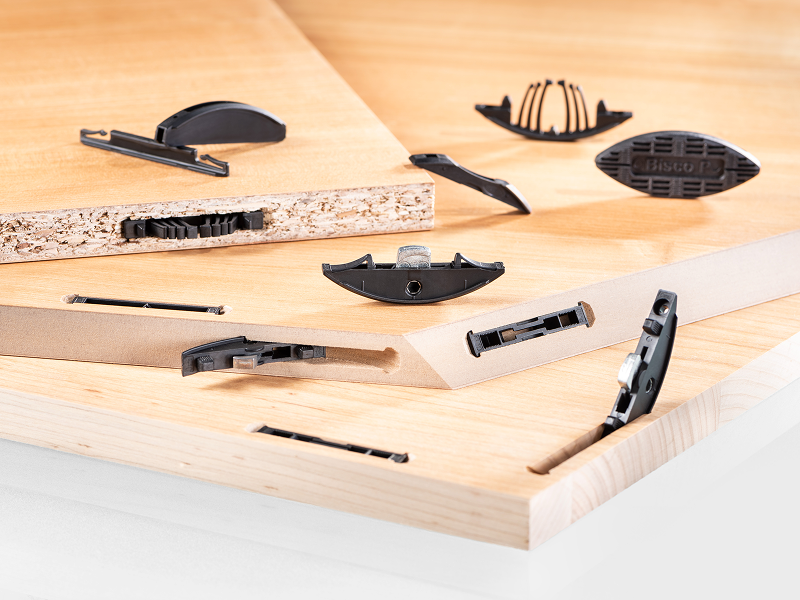

P-System
Connect every angle and save time
The Lamello P-System is an innovative and time-saving joining system for wood and wood composites. The Clamex P-14, Tenso P-14 and Divario P-18 connecting fittings enable flexibility, creativity and efficiency throughout the design, manufacturing, transport and assembly process. The positive-locking P-System groove forms the foundation, which is milled into the workpiece using the Zeta P2 biscuit joiner or on a CNC machining centre. The P-System connectors are inserted into the P-System groove by hand in seconds and securely anchored. The wide range of connectors enables almost any application, many angle connections and a variety of functions such as detachable, invisible or slide-in joints.
P-System Features
Fast installation
Inserting instead of screwing or glueing
Strong
Form-locking anchorage across large surface areas
Lateral tolerance
Perfect, flush alignment of both workpieces
Shallow depth
Minimal cutting depth with maximum tensile strength
No twisting
The positioning pins prevent twisting without additional dowels
P-System Advantages

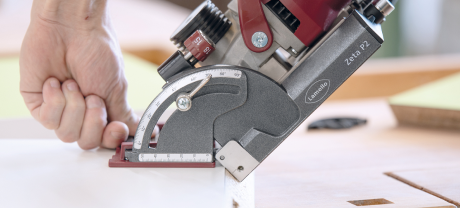

Production
Machining possible with Zeta P2 or CNC machinery
Only one tool change from P-System cutter to 6 mm drill
Same groove everywhere: whether corner connection, shelf, centre panel or mitres
Consistently competent partners: from CAD to CAM and CNC

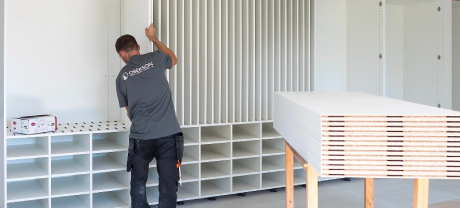

Transportation
Tool-free connector installation
Workpieces with pre-installed P-System connectors are stackable for storage and transport
No extra bags or loose hardware required with furniture shipment
Tool-free connector disassembly for surface treatment

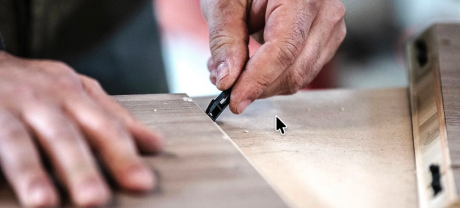

Assembly
Simple positioning of workpieces thanks to positioning pins
Easy assembly with an Allen key
Aesthetically small, barely visible hole (Ø = 6 mm)
Open the connection time and time again with the rotating lever
Lateral tolerance perfect, flush alignment of both workpieces
P-System Product: Clamex P

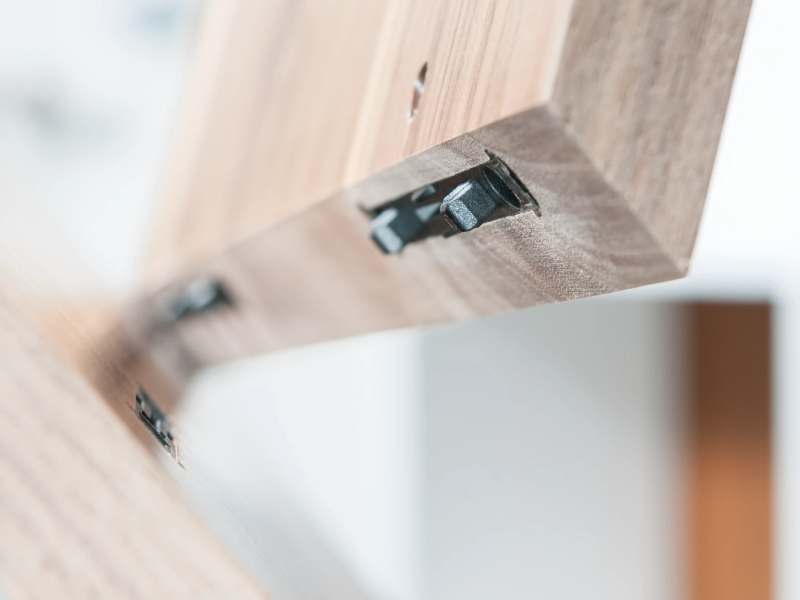

Clamex P
Aesthetic look with the barely visible 6 mm access hole
Clamex P is a detachable connector and is anchored in the form-locking P-System groove within seconds. Through the minimalist 6 mm access hole, Clamex P is firmly connected and disconnected using a lever.
Clamex P eliminates the need for glue, allows aesthetic joints at all angles and is ideal for permanently joined or detachable mitres.
Clamex P Features
Detachable
Open the connection time and time again with the rotating lever
Aesthetic
The small, hardly visible opening (Ø = 6 mm) serves to close and open the connector
High clamping force
Clamp and glue workpieces at any angle, ~ 80 kg or 170 lb
Stackable
Workpieces with pre-installed P-System connectors are stackable for storage and transport
Versatile
The shallow element depth allows for mitres from 22.5 – 180°, surface, corner and dividing panel connections
Clamex P Products
P-System Product: Tenso P

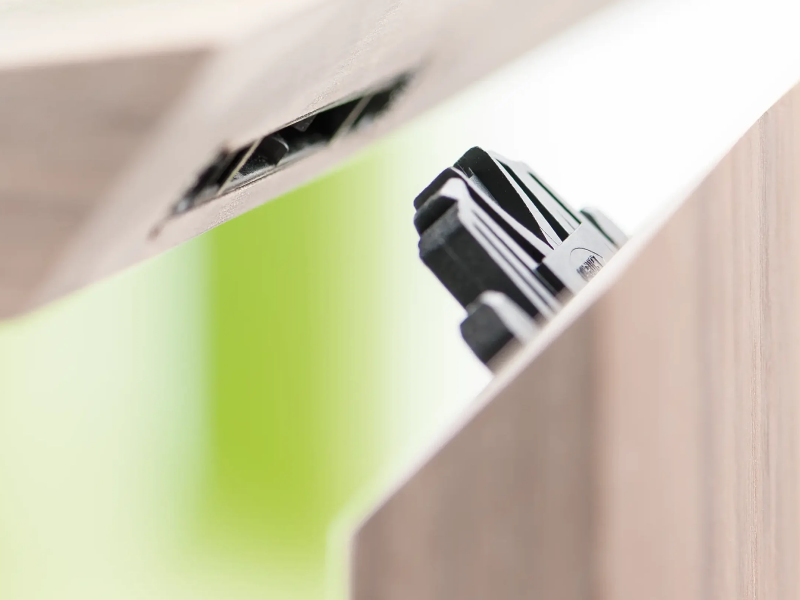

Tenso P
High clamping force for perfectly clamped joints without screw clamps and shims
Tenso P-14 is a self-clamping glueing aid and is anchored in the form-locking P-System groove within seconds. The high clamping force of Tenso leads to perfectly clamped joints without the need for clamps or presses, regardless of the angle of the work pieces.
Aesthetic joining is possible without visible connectors, with short assembly times and without the need to wait for the glue to dry.
Tenso P Features
Glueing
Fixed joints of two workpieces
Invisible
No visible connector
High clamping force
Allows for perfect alignment and clamps the workpieces ~ 15 kg or 30 lb
Versatile
Simple glueing of mitre joints
Lower assembly force
In combination with the pretension clip, only a short force impulse is required to snap it into place
Tenso P Products
P-System Product: Bisco P

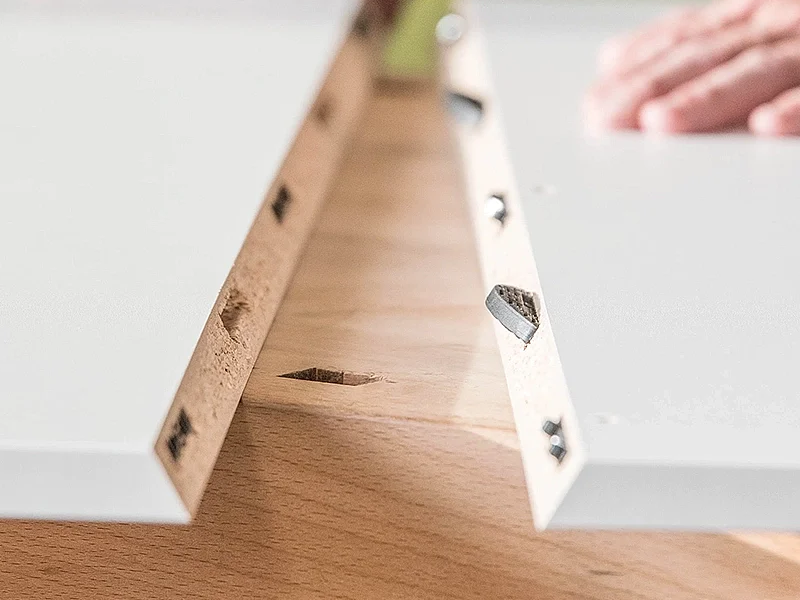

Bisco P
Plastic element for Clamex P and Tenso P
Bisco P is a plastic biscuit which fits into the 7 mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14; and Bisco P-10 with the same connectors in size P-10.
Bisco P Features
Flush alignment
The generous sliding tolerance allows for perfect flush alignment of workpieces
Alternating application
Combination with Clamex or Tenso. Ideal for dry joints before glueing to ensure that the groove fits.
Versatile
The shallow element depth allows for mitres from 22.5 – 180°, surface, corner and dividing panel connections
Bisco P Product
P-System Product: Divario P-18

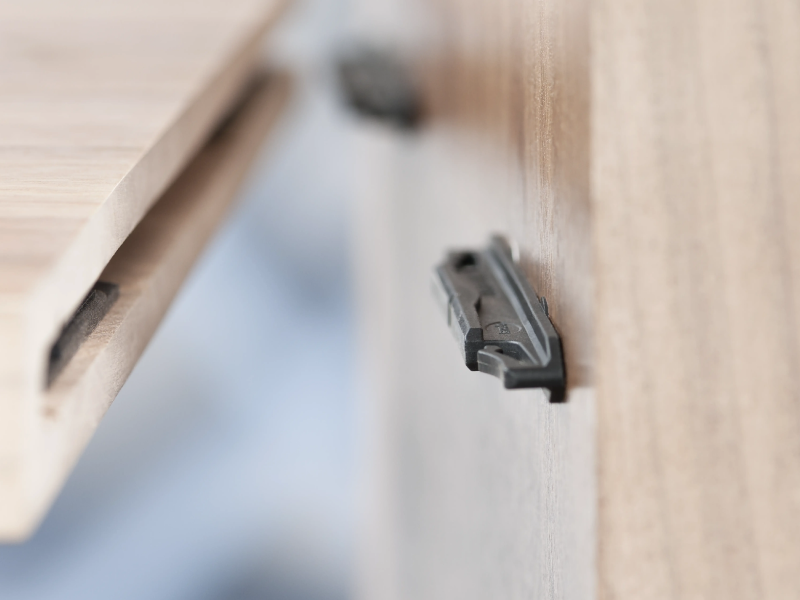

Divario P-18
Perfectly closed joints without visible connectors
Divario P-18 is a detachable connector for slide-in insertion and is anchored in the form-locking P-System groove within seconds. The connector is used to slide shelves or partitions into an already assembed cabinet. In the process, the Divario P-18 clamps the workpieces together firmly and ensures perfectly closed joints without visible connectors. Divario P-18 is used for joining shelves to divisions from 18 mm panel thickness or in butt joints from 12 mm
Divario P-18 Features
Sliding insertion
Slide in between two fixed sides or shelves using a guide groove
Invisible
Guiding groove covers the connectors
Clamped joint
No resistance while inserting until shortly before building the clamping force
Fast installation
Quick installation of the connectors without glue after transport
Assemble by sliding
Partially routed guiding groove for completely invisible furniture joints
Divario P-18 Product
P-System Product: LC P-16

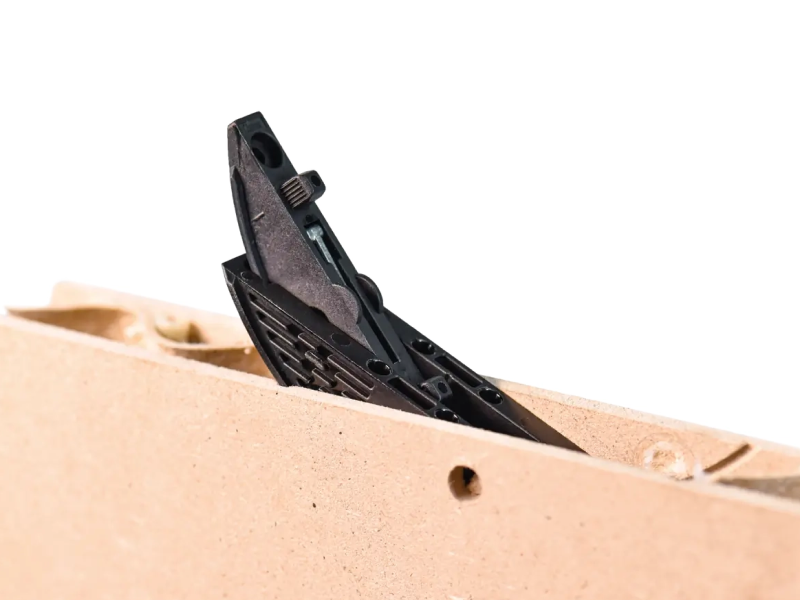

LC P-16
New possibilities in lightweight construction with the P-System
The LC P-16 is a P-System joint for lightweight panels. It is securely anchored in the surface layer by its profile. The integrated P-System groove makes it possible to slide in Clamex P connectors without the time-consuming use of concealed timber edges or glues. Machining with two to three machining steps is carried out either with the Zeta P2 or, even more efficiently, with the CNC machining centre. Thanks to the three sizes of the LC P-16, detachable connections in various lightweight panels are possible.
LC P-16 Features
No concealed timber edging required
Time-saving anchorage directly in the surface layer
Fast installation
Inserting instead of screwing or glueing
Combine
Can be used with Clamex P-14, Clamex P-14 Flexus, Clamex P-14 CNC
A wide range of materials and thicknesses
Three product sizes available for various lightweight panel applications
Strong P-System anchorage
Form-locking anchorage across large surface areas
LC P-16 Product
P-System Processing Possibilities

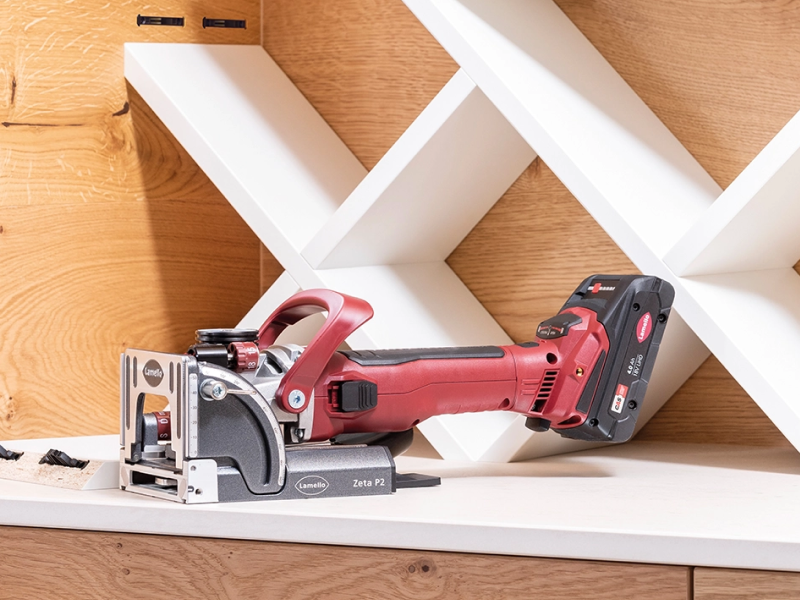

Zeta P2 The Biscuit Joiner P-System
Extremely fast, time-saving joining method - Cut. Connect. Done.
The Zeta P2 is the biscuit joiner for P-System connectors and is used to create the formlocking P-System goove within seconds. The integrated vertical mechanical drive is automatically triggered at the maximum cutting depth and performs a lateral cutter movement for the P-System groove. Connectors with various functions and different sizes can now be inserted into the form-locking P-System groove. The insertion into the groove is quick and without tools.
Zeta P2 Features
Fast connection
Extremely fast connection method with a power tool
Automatic vertical movement
Machining of the form-fit groove in seconds with the lateral cutter movement
Numerous machining options
Make angle connections quickly and precisely without marking
Stabilising stop square
Perfectly positioned machine for cuts into the surface
Zeta P2 And Classic Products
